GMF200 sanitary magnetic flow meter is specially designed for measurement of food liquid, like milk, cream, juice of various fruits, pharma liquid etc. It is available with compact or remote version of transmitter can be installation either horizontally or vertically with a variety of optional end-fittings to meet your requirements.
sanitary magnetic flow meter
milk, cream, juice,beer measurment
Tri-clamp connection
GMF200 Sanitary Electromagnetic flow meter | |
Medium | Food, pharmaceutical industries such as milk, fruit juice, medicine. |
Diameter | DN10~DN100mm |
Accuracy | ±0.5% |
Medium temperature | <180℃ |
Nominal pressure | 1.6 MPa |
Flow rate | 0.3~10m/s |
Straight pipe required | Upstream ≥5DN,downstream ≥3DN |
Electrode | 316L |
Lining material | PTFE(F4), Teflon FEP(F46), PFA |
Installation way | Clamp on |
Body material | SUS304(standard),SUS316(optional) |
Power supply | 220VAC/24VDC/lithium battery |
Signal output | Pulse and 4~20mA |
Communication | RS485,GPRS,Hart |
Explosion-proof | No |
Protection proof | IP65(compact type),IP67,IP68(suitable for remote type) |
Work environment | Ambient temperature:-20~+60℃,Ambient humidity:5%~90% |

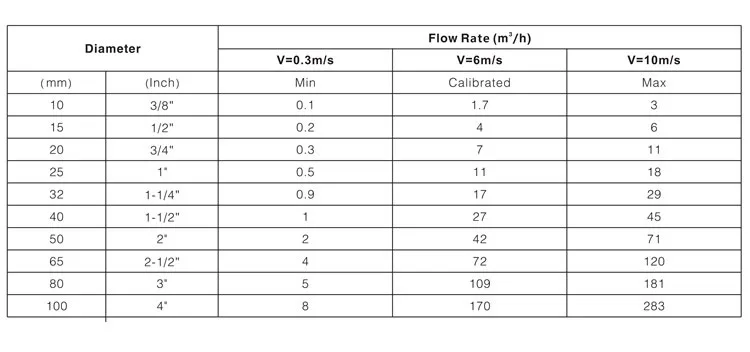

Flow rate provided shall be in consistent with the following chart:
Flow controller
Application:The customer wants to set a value, and then when it gets to this value, the traffic should be turned off.
