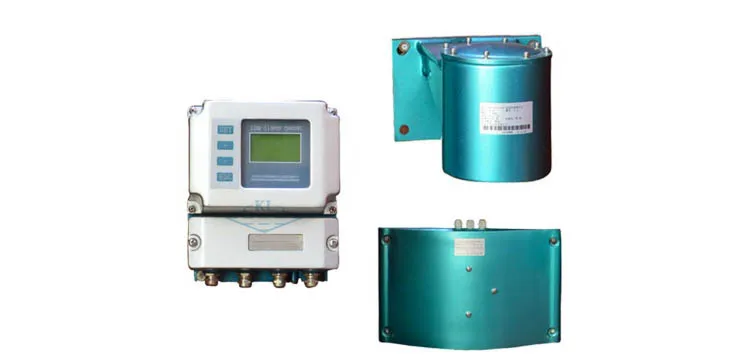

GMF600 intelligent open channel electromagnetic flowmeter is an open channel measurement flow system that consists of a flow display meter, a flow meter, and a liquid level meter.
The open channel flow measurement system is widely used for flow measurement of rectangular, trapezoidal open channels and culverts such as reservoirs, rivers, water conservancy projects, urban water supply, sewage treatment, farmland irrigation, water resources and water resources
IP68 underwater
open channel,well...
Weir trough type
GPRS,RS485 communication
Item | Mainly parameters |
Accuracy | flow velocity±1.0%,water level±0.5%,system±2.5% |
Power dissipation | <5W |
Power supply | DC12V/24V,AC220V,DC3.6V(battery power) |
Measuring range | Velocity 0.05~10m/s |
Channel width | 0.5~20m |
Channel depth | 0.5~20m |
Cumulative flow display maximum | 9999999999 |
Instantaneous flow rate display maximum | 10000 |
Flow rate display maximum | 19.99 |
Water level display maximum | 19.999 |
Output | Pulse,4~20mA |
Communication | GPRS,RS-485[MODBUS(RTU)]Communication Interface |
Water level measurement | Ultrasonic level gauge, radar level gauge |

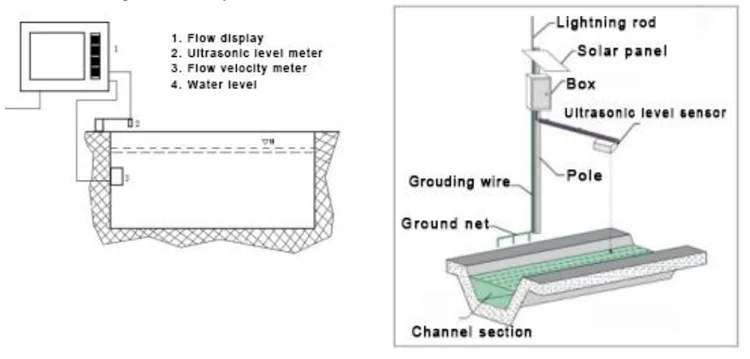

Electromagnetic flow rate + ultrasonic level measurement
Note:
1.The location of the tachometer and level gauge should be chosen as far as possible in the area where the channel or river is relatively straight, try to avoid the gate, the curve, the inlet/outlet, and the up and down ramp, and the length of the straight channel should be a certain length. The length of the upper and lower reaches of the straight canal is preferably greater than 10 times the width of the canal, so that the distribution of the water at the measurement end will be relatively stable and uniform, and the measurement data will be more accurate.
2.The flow velocity sensor is installed on the side wall of the channel (if there is no siltation problem, it is installed on the bottom of the channel). The upper and lower positions are preferably at 60% of the water depth. The direction sign points to the downstream of the water flow, ensuring that the flow velocity sensor is parallel to the flow axis. The installation point of the liquid level gauge should be as close as possible to the installation position of the flow velocity sensor. The installation of the liquid level gauge should be perpendicular to the water surface. The distance from the plane of the ultrasonic level gauge to the bottom of the channel should be the same as the range of the liquid level gauge.
Before order, please confirm the following parameters:
1.Channel shape: Rectangular, trapezoidal or other shape channels
2.Channel width and height?
3.Channel maximum flow rate: m/s?
4.Channel common water level:m?
5.Is there an external power supply?
GMF600- | Note | |||||
Power supply
| A | 3.6VDC | ||||
B | 12VDC | |||||
C | 24VDC | |||||
D | 220VAC | |||||
Flow sensor | A | Electromagnetic flow sensor | ||||
Liquid level sensor | A | Ultrasonic liquid level sensor | ||||
B | Radar liquid level sensor | |||||
Output+Communication | A | RS485,pulse,4-20mA | ||||
B | RS232 | |||||
C | RS485 | |||||
Cable length | *** | 10m(standard) | ||||
Eg:GMF600-BAAA20
GMF600 open channel flow meter,12VDC,Electromagnetic flow sensor,Ultrasonic liquid level sensor
(If no special instructions standard 5 meters range),RS485+pulse+4~20mA,20m cable ,No communication module
