Bimetallic thermometer is a kind of instrument for on site temperature measurement. It could detect temperature of liquid, steam and gas medium in range of -80℃～+500℃ directly.
Features
♦ On site temperature reading, direct and convenient
♦ Safe and stable, with long service life
♦ Multiple structure options for various requirement
On site temperature reading, direct and convenient
Safe and stable, with long service life
Multiple structure options for various requirement
Operating theory
Bimetallic thermometer is made by two curved metal strips, when the strips expanded by heat, indicator of the thermometer will turn and indicate temperature according to EMF.
Structure

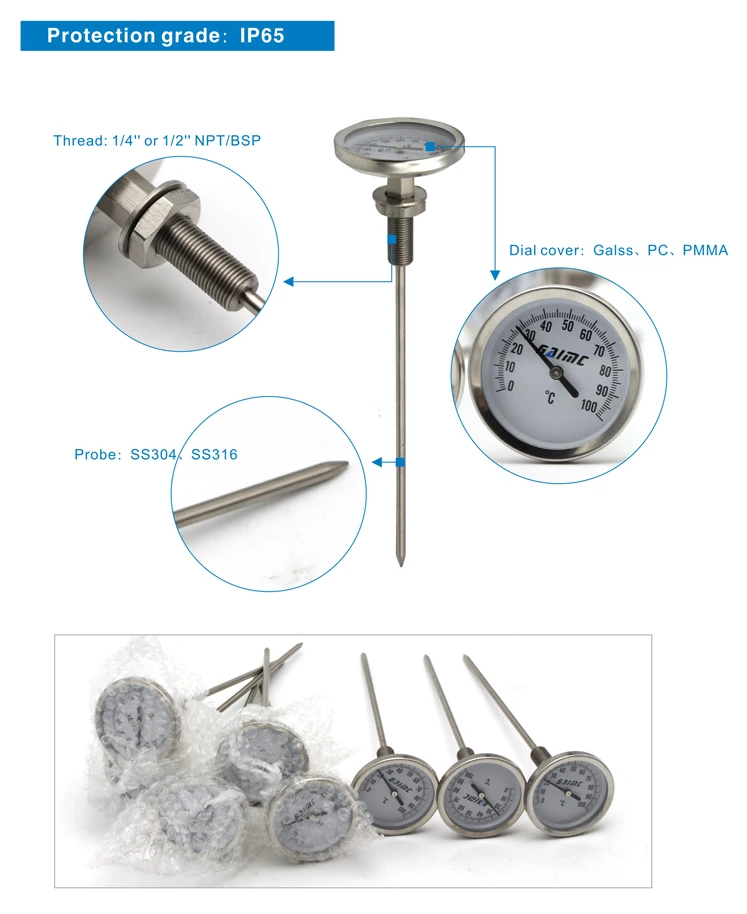

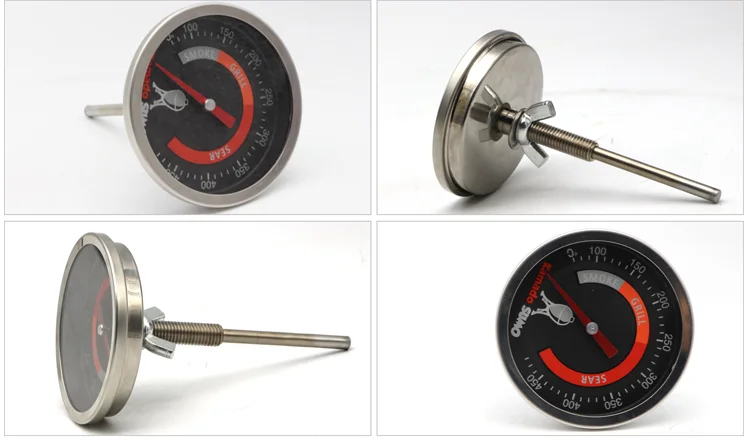

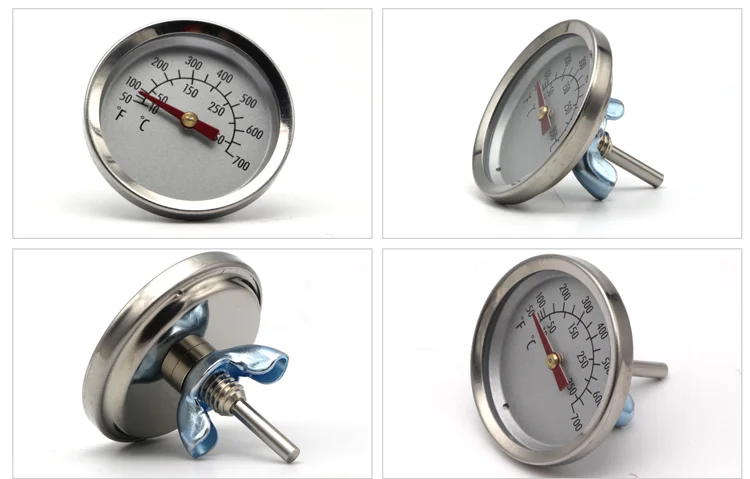

Product Show
(send us parameters or drawing reference)
GWSS Code | Bimetal thermometer | ||||
Dial size | 3 | Φ60 | |||
4 | Φ100 | ||||
5 | Φ150 | ||||
Structure | B | Axial type (Horizontal type) | |||
C | Straight type (Radial type) | ||||
D | 135° type (135° angle between dial and probe) | ||||
E | Multi-direction type (Adjustable angle type) | ||||
Installation | 0 | No thread | |||
1 | Movable external thread | ||||
2 | Movable internal thread | ||||
3 | Fixed thread | ||||
4 | Fixed flange | ||||
5 | Bulkhead thread | ||||
6 | Bulkhead flange | ||||
Protection mode | N/A | No protection | |||
W | Protection type | ||||
F | Anti-corrosion type | ||||
