Bimetallic thermometer is a kind of instrument for on site temperature measurement. It could detect temperature of liquid, steam and gas medium in range of -80℃~+500℃ directly.
Features
1. The thermometer displays on-site temperature, intuitive and convenient, accurate temperature measurement; safe and reliable, long service life, fast reading
2. The product is adapted to the actual production needs, with different installation and fixed forms, we can customize according to the needs of customers.
3.Galvanized water temperature gauge, easy to maintain, will not affect equipment operation and production operations, widely used in industrial sites.

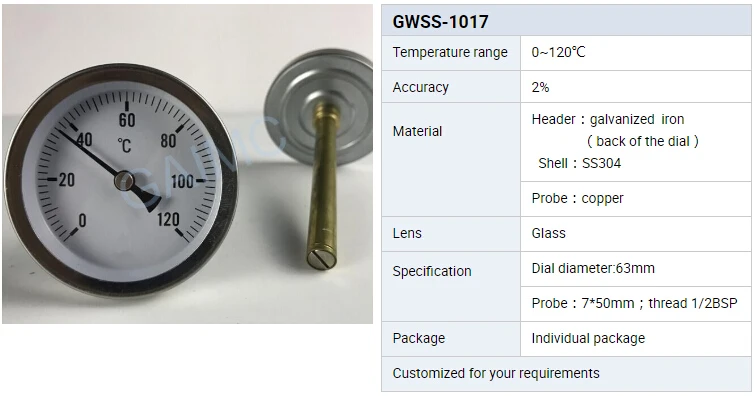

Galvanized water temperature gauge
safe and reliable
Galvanized water temperature gauge
(send us parameters or drawing reference)
| unit weight | 87g |
| interbox size | 6.5x 6.5 x 7.5 CM |
| package | Individual package,100/box |
| carton size | 55x 55 x 33 CM |
Operating theory
Bimetallic thermometer is made by two curved metal strips, when the strips expanded by heat, indicator of the thermometer will turn and indicate temperature according to EMF.
Structure
GWSS Code | Bimetal thermometer | ||||
Dial size | 3 | Φ60 | |||
4 | Φ100 | ||||
5 | Φ150 | ||||
6 | Customized | ||||
Structure | B | Axial type (Horizontal type) | |||
C | Straight type (Radial type) | ||||
D | 135° type (135° angle between dial and probe) | ||||
E | Multi-direction type (Adjustable angle type) | ||||
Installation | 0 | No thread | |||
1 | Movable external thread | ||||
2 | Movable internal thread | ||||
3 | Fixed thread | ||||
4 | Fixed flange | ||||
5 | Bulkhead thread | ||||
6 | Bulkhead flange | ||||
Protection mode | N/A | No protection | |||
W | Protection type | ||||
F | Anti-corrosion type | ||||
