Description
G3151AP gauge pressure transmitter, absolute pressure transmitter, whose output signal conforms to 4~20mA/HART, PROFIBUS, FF protocol, can measure gauge pressure, absolute pressure, liquid level, flow and etc. in industrial production process. The digital signal contains many kinds of information about configuration, signal status and self-diagnosis.

Working conditions Ordinary transmitter

(1) Environmental temperature: -40 ℃ ~+85 ℃, -20 ℃~+60℃ for LCD indicator or filling
   fluorinated oil, -40 ℃~+60℃ for lightning protection (resistance to surge/transient)
(2) Relative humidity: 0%~100%
(3) Atmospheric pressure: 86kPa~106kPa
(4) The installation site should not have corrosive gas (to aluminum, chromium, nickel, zinc,
   stainless steel) and inflammables and explosives.
(5) External AC magnetic field ≤400A/m.

Product Show

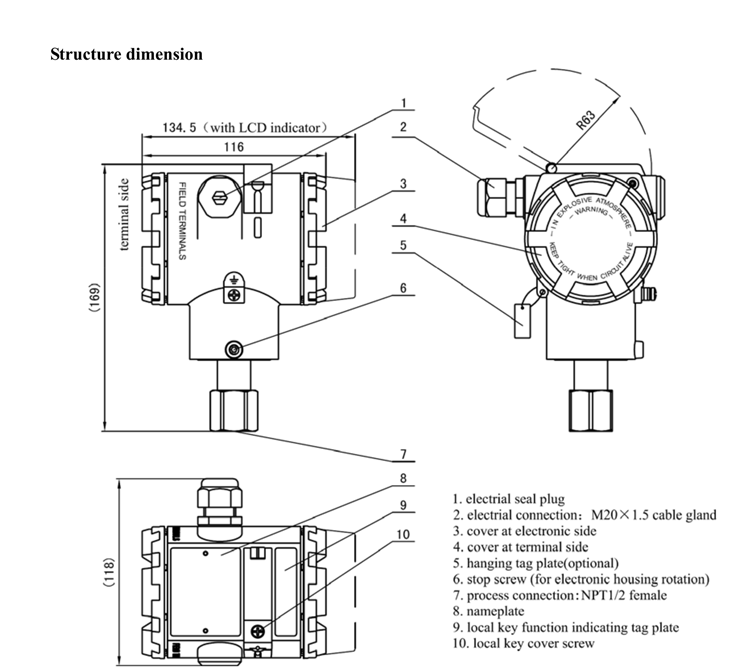

Structure

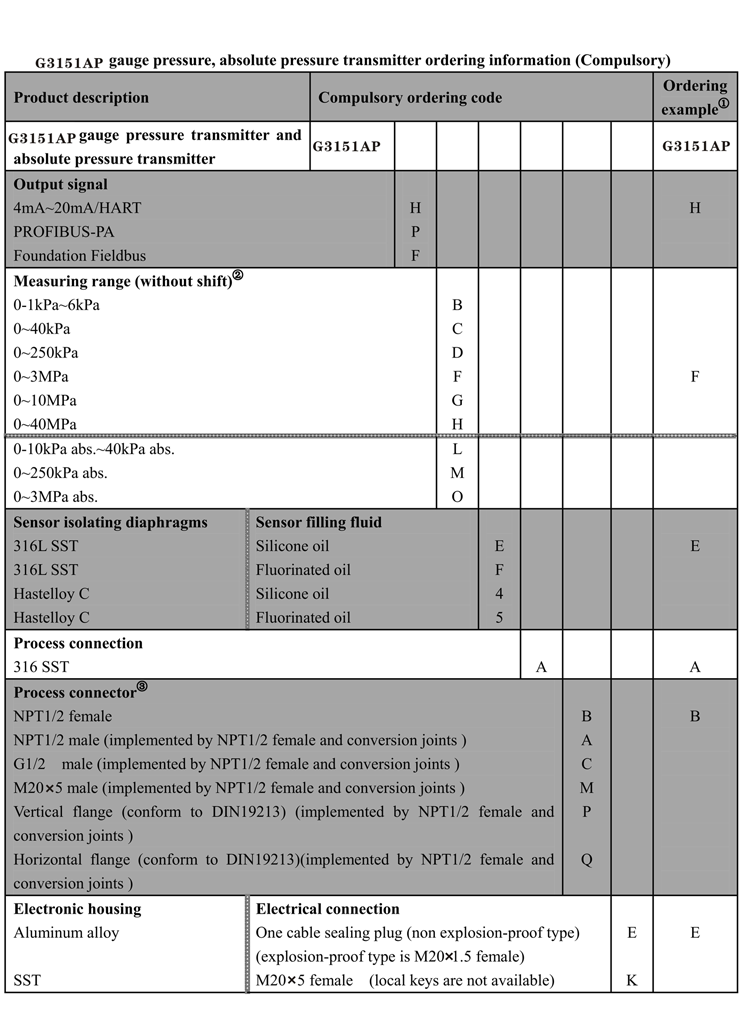

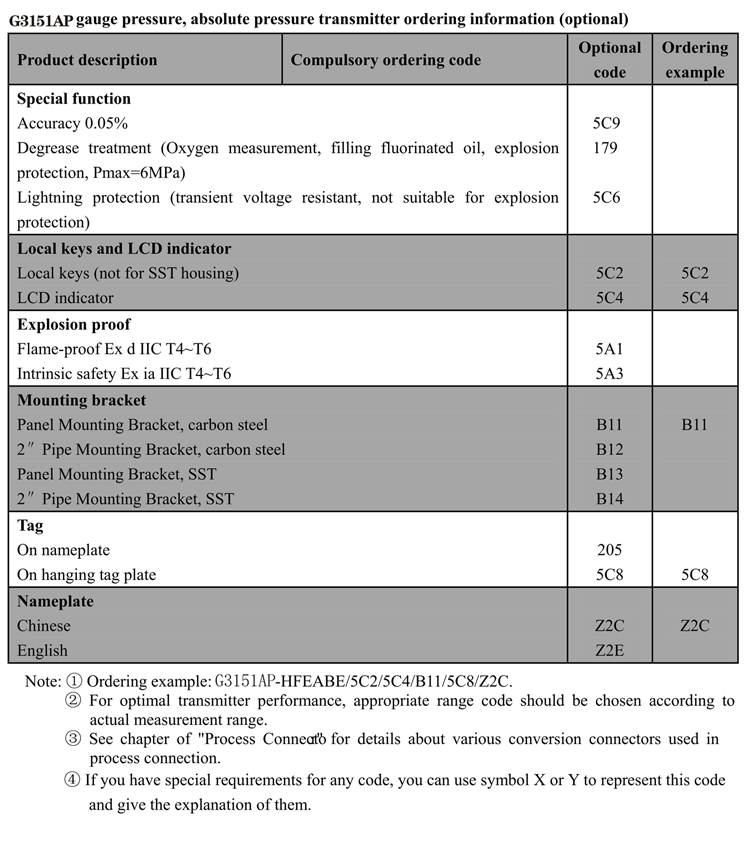

Type selection
