GTF600 turbine flowmeter is a kind of speed meter, it has high precision, good repeatability, simple structure, high pressure resistance, and wide measurement range, small volume, light weight, small pressure loss, long service life, simple operation, easy maintenance, etc.
Features:
1.The converter adopts the advanced ultra-low power PIC MCU as the core development, is the display integrative integration of the new intelligent instrument.
2.The converter has multi-point correction function and multiple output signals can be selected
3.The converter has the characteristics of compact structure, clear and clear reading, high reliability, no interference from outside power, lightning strike, price economy and powerful function.
4.High definition liquid crystal display display single flow and cumulative flow
1.High precision
2.Good repeatability
3.Simple structure & operation
4.Wide measurement range
Type | GTF600-25 | GTF600-40 |
Pipe material | Aluminum alloy | Aluminum alloy |
Diameter | 1 inch | 1.5 inch |
Flow range | 10~120L/min | 20~280L/min |
Accuracy | ±1% | ±1% |
Repeatability | ±0.5% | ±0.5% |
Medium | diesel,gasoline | diesel,gasoline |
Connection | thread | thread |
Pressure | 0.5MPa | 0.5MPa |

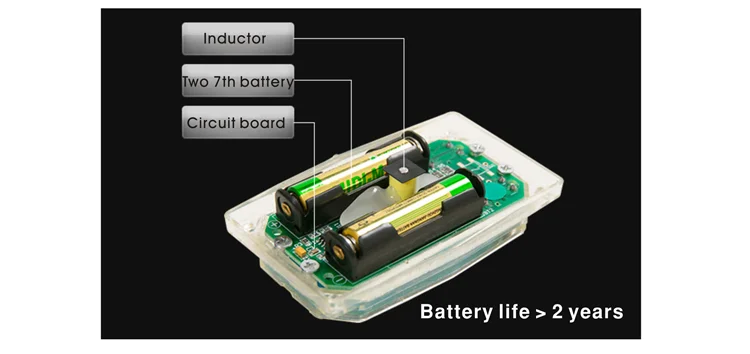

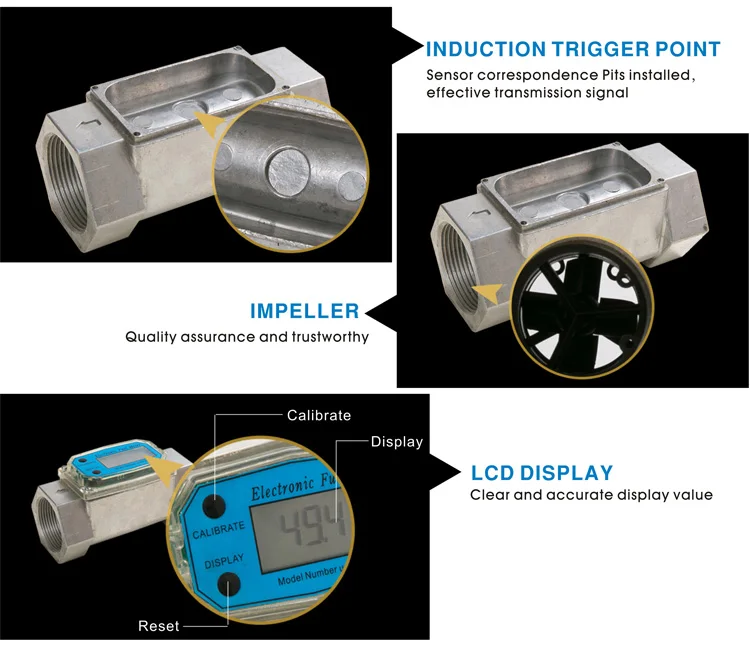

Internal Configuration:
It is mainly used to measure the volume flow and accumulation of low viscosity, non - corrosive and clean liquid in closed pipelines.Like tap water, demineralized water, deionized water, alcohol, kerosene, gasoline, etc.
Type | GTF600-25 | GTF600-40 |
Pipe material | Aluminum alloy | Aluminum alloy |
Diameter | 1 inch | 1.5 inch |
Flow range | 10~120L/min | 20~280L/min |
Accuracy | ±1% | ±1% |
Repeatability | ±0.5% | ±0.5% |
Medium | diesel,gasoline | diesel,gasoline |
Connection | thread | thread |
Pressure | 0.5MPa | 0.5MPa |
