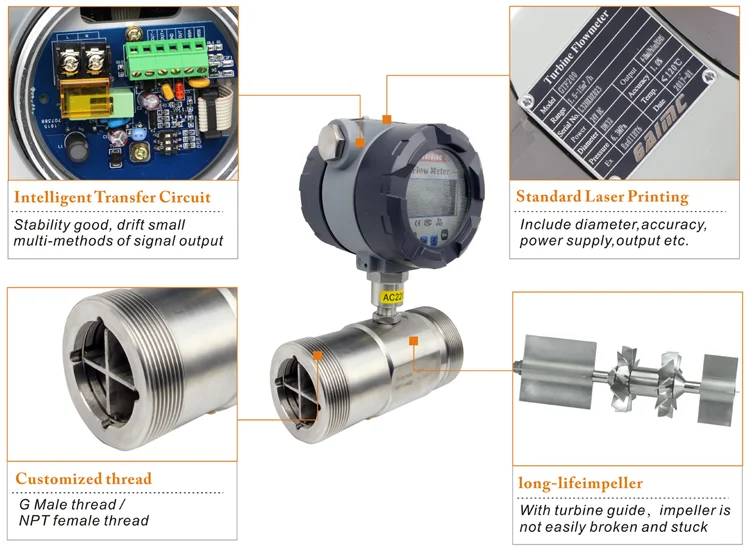

GTF300 diesel turbine flow meter is a new generation turbine flow meter which was designed with advanced flow technologies both home and aboard. The product possesses advantages of simple structure, light in weight, high accuracy, good repeatability, short response time, easy installation, etc. It could be used widely in measurement of closed pipe system for pure liquid that will not react with 1Cr18Ni9Ti, 2Cr13, Al2O3 and hard alloys.
1.Good repeatability
2.Compact and light structure
3.easy for installation and maintenance
| Item | Data |
| Medium | Non-corrosive low velocity liquid without impurity,not suitable for gas/steam |
| Accuracy | Class 1.0, class 0.5 |
| Flange standard | GB/T 9119-2010, DIN, ANSI, JIS |
| Output | Pulse, 4-20mA analog output, RS485 (Modbus-RTU protocol), HART |
| Diameter and installation | Flange connection DN15-DN200 |
| Screw connection: DN4-DN50 | |
| Loose flange connection: DN4-DN200 | |
Medium temperature
| Default type T1: -20℃~+80℃ (Standard) |
High temp. type T2: -20℃~+120℃ (OEM) | |
High temp. type T3: -20℃~+150℃(OEM) | |
| Operation condition | Operating temperature: -20℃~+60℃ |
| Related humidity: 5%~90% | |
| Atmospheric pressure: 86kPa~106kPa | |
| Ingress protection | IP65 |
| Explosion proof | ExdIIBT6 (explosion proof type) |
Flow range
Dimensions

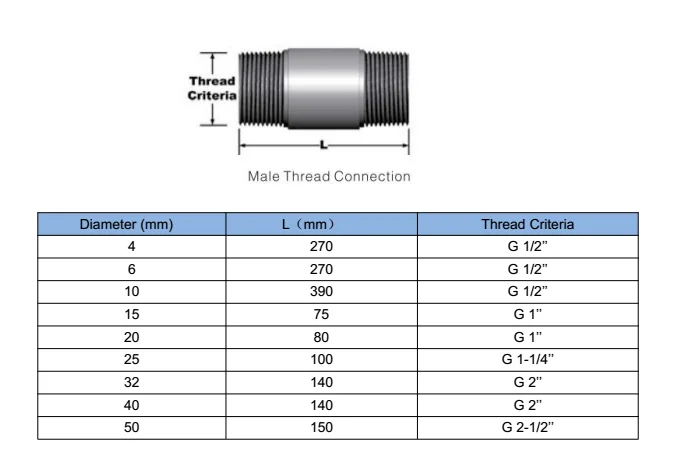

(1)Thread Connection
Notice:Other thread criteria is available on request.(Female/Male thread is Optional for G,NPT,BSP)
(2)Flange Connection
Example:
GTF300 DN50 E2 10 S S4 BT D16 T1
1 2 3 4 5 6 7 8
1. Diameter:DN50
2. E2:24VDC,Pulse and 4-20mA output,RS485,Digital display,EX
3. 10:1.0% of rate accuracy
4. S:Standard range 4-40m³/h
5. S4:SS304 Body Material
6. BT:Exd II BT6
7. D16:Flange DIN PN16
8. T1:-20~+120℃
