1.Low cost online measurement
2.Dual power supply, built-in lithium battery (3.6 V) and DC8-36 V dc power supply
3.Protection class IP68, can work underwater 2m

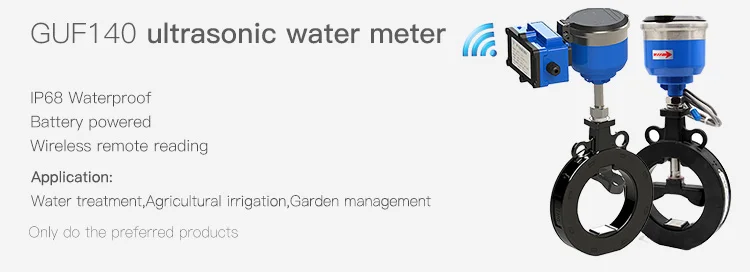

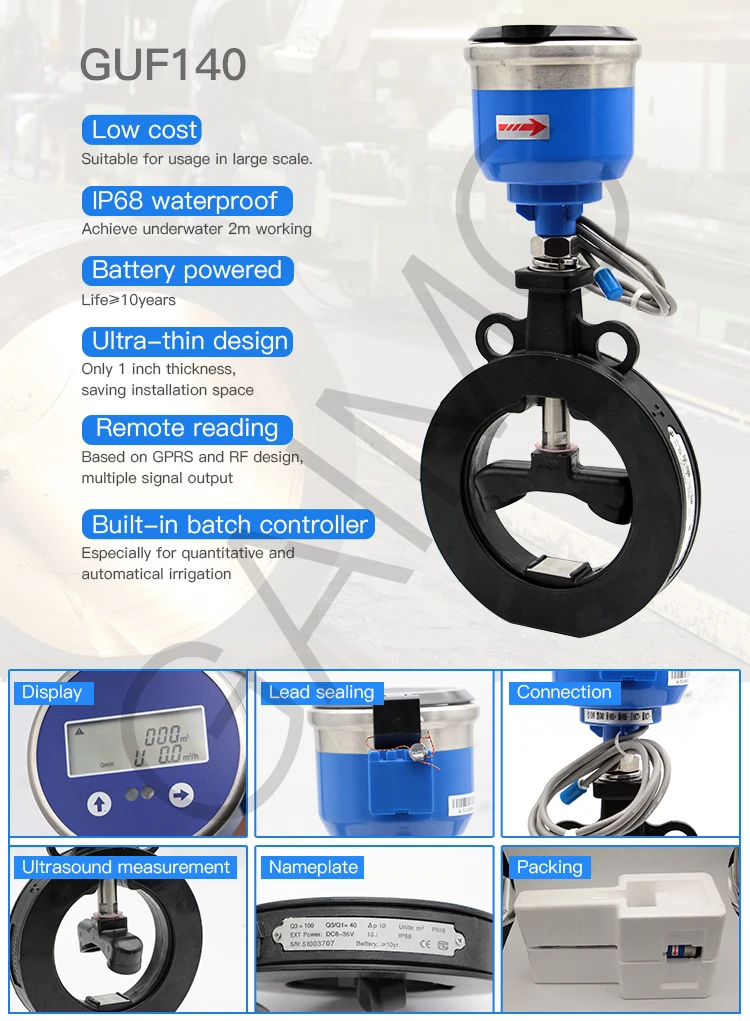

GUF140 series Insertion ultrasonic water meter is a new-style water meter specifically designed for agricultural irrigation,garden management and water resource supervision.
Advantage of this water meter include low cost, high accuracy, low power consumption,stability and reliability.1 inch thickness of the meter helps to save the installation space,and all parts achieve to IP68 enable the water meter work in any severe environment.Due to the unique design structure,there will be no pressure loss and different water medium will have no influence on measurement. This ultrasonic water meter will be a major breakthrough for water measurement in agricultural irrigation.
1.Protection class IP68
2.Ultra-thin design
3.Built-in quantitative controllers
4.GPRS module
5.Online measurement
Parameters
Item | Specification |
Standard | ISO 4064-2005,GBT 778-2007 |
Measure fluid | Water,sewage,seawater(other liquid need to be customized) The pipeline should be full of liquid |
Medium temperature | 0.1-30℃ |
Working environment | Temperature:-30-45℃; humidity≤100%(RH) |
Pressure | 1.6Mpa |
Pressure loss | None |
Upstream sensitivity | U5 |
Downstream sensitivity | D3 |
Climate and mechanical | C level |
Electromagnetic compatibility class | E2 level |
Communication interface | RS485/USART/Infrared |
Output signal | Two way OCT or TTL pulse output/one way 4-20mA analog output |
Power supply | Built-in lithium battery(3.6V,19Ah)/DC8-36V power supply/two-wire system 4-20mA |
Protection level | IP68 ,available to work 2 meters underwater |
Digital display | 9 digits cumulative flow and 4 digits instantaneous flow shown in two rows and varies of state prompt and units |
Data storage | Use EEPROM/Flash,automatically record the cumulative flow of last 128 months and last 512 days |
Measurement cycle | measuring:1 times/second:verification:4 times/second |
Power consumption | ≤2.7AH/Year,6 years battery life |
Flow range
Nominal Diameter(mm) |
R | Flow(m³/h) | ||||
Starting Flow rate | Minimum Flow rate Q1 | Transitional Flow rate Q2 | Permanent Flow rate Q3 | Overload Flow rate Q4 | ||
DN80 | 40 | 0.625 | 2.500 | 4.000 | 100.000 | 125.000 |
DN100 | 40 | 1.000 | 4.000 | 6.400 | 160.000 | 200.000 |
DN125 | 40 | 1.250 | 5.000 | 8.000 | 200.000 | 250.000 |
DN150 | 40 | 1.5625 | 6.250 | 10.000 | 250.000 | 312.500 |
Wire connection
GPRS wireless module
Example :GUF140 - 100 - 1 - 1 - 0 - 1m - 1
Explanation :DN100 ultrasonic water meter-main body made of nylon ,header made of 403 stainless steel ,communication interface:RS485-external power supply:DC8-wireless meter reading has not been available-standard 1m signal cable ,optional protective cover.
