Product description

♦Fluid - layered double - channel measurement,accuracy and reliability

♦Low power consumption design, battery power supply, battery life over 10 years

♦The protection grade is IP68, suitable for all kinds of soaking and wet conditions

♦No mechanical rotating parts, no wear, no pressure loss, and long service life

♦Support optical interface, RS485, MBUS, wireless communication etc.

Measurement drawing

      ultrasonic heat meter= ultrasonic water meter+temperature transducers

3.   Pipe material

                 DN15-DN40                              DN50-DN150                                       DN200-DN300

Single channel small diameter           Double-channel big diameter          Double-channel big diameter

                  Copper                                    Nodular cast iron                                        Carbon steel

1.Protection grade is IP68

2.Battery power supply

3.Support RS485, MBUS, wireless communication

Technical parameter

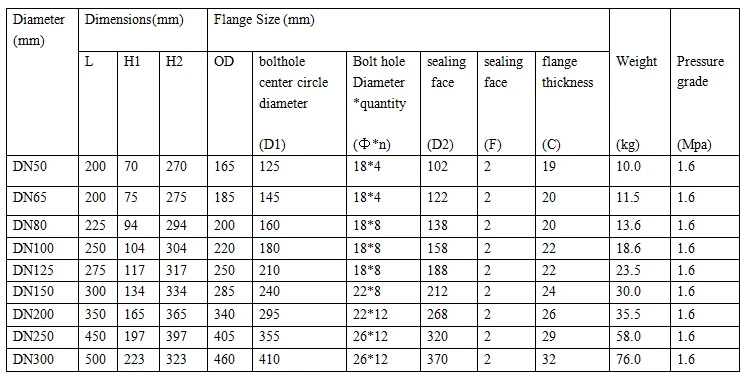

Dimensions and weight

DN15-DN40mm

DN50-DN300mm

Flow/Heat range

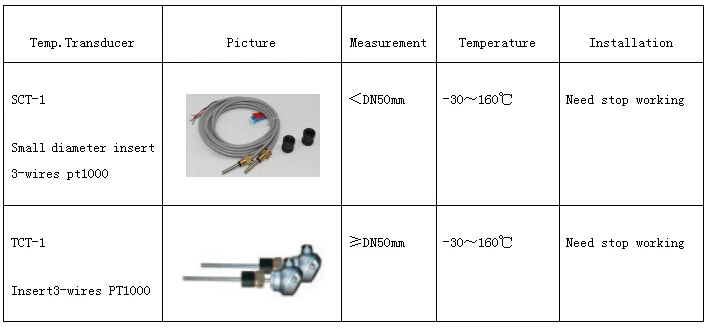

Optional temperature transducer

Type selction

Note:1.The communication interface standard is RS485,output/power standard is DC8-36V;

2.Choosing a wireless meter can not select communication interface and output signal

3.The communication interface, output/power supply can be selected two items to the external waterproof junction box

Eg:GUH142-DN100-1-1-1-2

     GUH142 Battery ultrasonic heat meter,DN100mm,communication interface-RS485,power-DC8~36V,non-wireless meter reading,with PT1000 TCT-1.
