1.Only 30s achieve flow measurement
2.Measures without any adjustments
3.Multi-output option
4.Permanent and repeatable cumulative
Installation
Applicable pipe diameter range:DN15-DN50
Applicable industry
1. Tap water
2. Air conditioning water
3. Desalination
4.Pure water / ultrapure water
5. Industrial circulating water
6. Cooling water
7. Softened water
Applicable pipe
PVC,Copper,Stainless steel,Carbon steel
♦ DN15-50
♦ Only 30s achieve flow measurement
♦ Measures without any adjustments
♦ Multi-output option
♦ Permanent and repeatable cumulative
Flow rate range:0-6m/s |
Accuracy:1.5%(FS) |
Diameter:DN15-DN50 |
Kwyboard:Single touch button |
Display:LCD |
Power consumption:3-4W(Depending on function) |
Power supply:10-36VDC(max 500mA) |
Shell material:ABS |
Protection grade:IP54 |

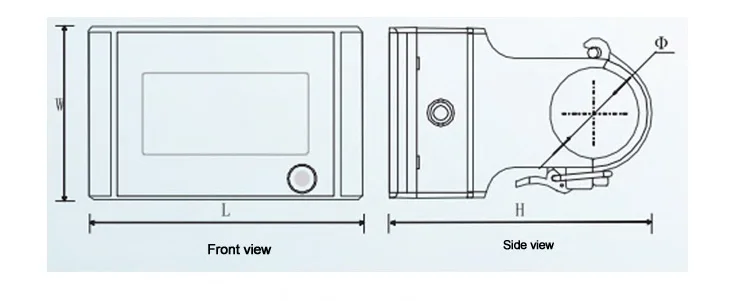

Dimension
Specification table unit:mm | |||||
Tube diameterφ | Inner diameter range |
L |
W |
H | Flow range m3/h |
20 | 13.8-17 | 100 | 63 | 88 | 0.04-4 |
25 | 18.8-22 | 100 | 63 | 93 | 0.07-7 |
32 | 24.2-29 | 100 | 63 | 100 | 0.11-11 |
40 | 31-37 | 100 | 63 | 113 | 0.19-19 |
Alternative to traditional rotor flowmeters, flow control and monitoring, total fluid calculation, pump protection, proportional control, water distribution, leak detection.
Type selection
Model | GUF200 |
Standard | Cable length:3m |
A | I/0 option |
1 | 4-20mA,RS485 |

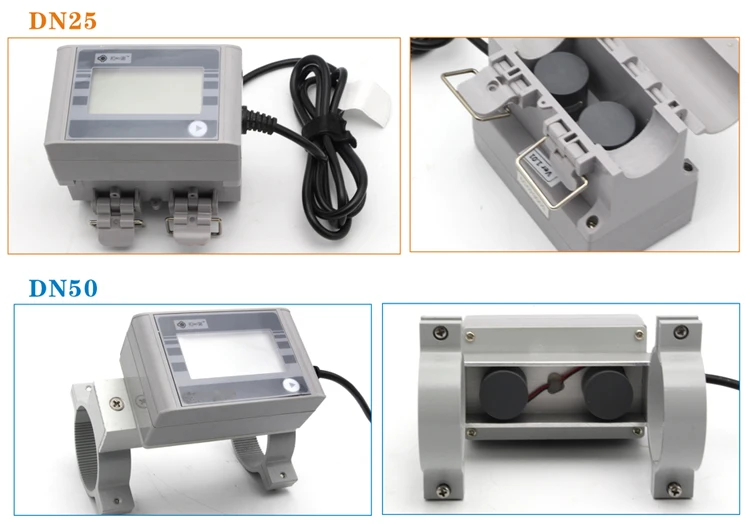

B | Description of sensor |
DN15 |
Name: Clamp-on sensor Installation: Clamp-on Measure medium temperature: -10~+50℃ Integrated installment |
DN20 | |
DN25 | |
DN32 | |
DN40 | |
DN50 | |
C | Power Converter |
1 | None |
2 | Yes (input 220V, output 12V, Load Current 1A) |
For example:GUF200-1-DN20-1
clamp-on flow meter,Standard I/O,DN20,Cable length 3m,no power converter.

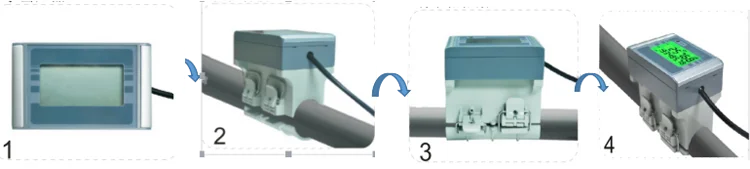

Steps:
1.take out device →2.clamp on tube →3.fasten the clamp →4.done
