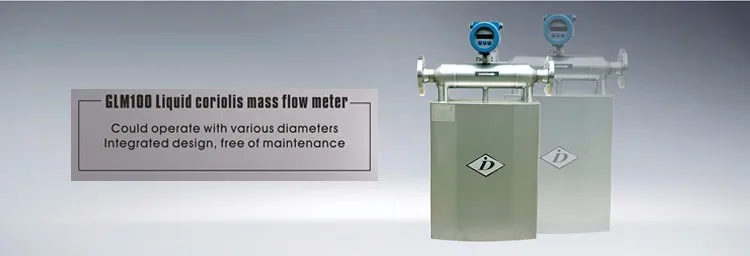

GLM100 Series Coriolis Mass Flow meter and IPT 200/DPT 100 transmitter are paired to constitute GLM100 Series flow meter with accuracy in 0.2% or 0.15%.
Feature
1.Double-U or double-C flow tube ensures high metering accuracy and customer’s requirement.
2.A comprehensive series of data supplied, including mass flow, volume flow, density, temperature and reference parameters, makes reliable results without tedious conversion, the flowmeter is a direct substitute of voltmeter.
3. Integrated installation structure reduces installation cost.
4. Standard size of sensor output interface makes the compatible transmitter replaceable, which is easier for maintenance.
5. High stability spares people from frequent calibration.
6. Dispensing with rectification and special installation of filter or straight tube parts.
7. Having no moving parts so there is no need for frequent maintenance.
8. No choke-flow parts and the larger flow normal diameter enable the reduction of pressure loss, energy consumption and improvidence.
9.A vast range of calibers can suit all the metering requirements in the process of
1.Accuracy in 0.2% or 0.15%
2.Double-U or double-C flow tube
3.Liquid，Gas,Air
Sensor | ||||||
Pipe diameter | Accuracy | Density accuracy | Temp. range | Pressure | Material | Transmitter type |
DN6-250 | ±0.15%,±0.2% | ±2kg/m³ | -40~350℃ | ≤6.3.mpa | 316L | DPT100,IPT200 |
Transmitter | ||||||
Type | Power supply | Current output | Frequency output | Digital communication | HMI | Explosion-proof |
Compact or split | 24VDC 220VAC | 4-20mA (Active) | 0-10KHZ (Active or passive ) | RS485/MODBUS HART/FF (optioanl) | LCD display | Exde[ib]IICT6 Gb |
Note: The scene can be configured to check, zero calibration. | ||||||
Liquid Flow Rate
Maximum mass flow rate | Pipeline diameter | Mass flow(Kg/h) | Volum flow(L/H) |
N5 | 500 | 500 | |
N10 | 1500 | 1500 | |
N15 | 4500 | 4500 | |
N20 | 9450 | 9450 | |
N25 | 25500 | 25500 | |
N50 | 94500 | 94500 | |
N80 | 240000 | 240000 | |
N100 | 540000 | 540000 | |
N150 | 825000 | 825000 | |
N200 | 1650000 | 1650000 | |
N250 | 2700000 | 2700000 |
Density Performance (liquid only)
Accuracy | ±0.002g/cm3 | ±2.0kg/m3 |
Repeatability | ±0.001g/cm3 | ±1.0kg/m3 |
Measuring Range | 0.2~3.00g/cm3 | 200~3000kg/m3 |
Temperature Measure Range | -50℃~+350℃ (With Pt100 temperature measurer) |
Temperature of Measured Liquid: Integrated Installation | -40℃~+125℃ |
Divided Installation | -40℃~+350℃ |
Ambient Temperture: (Storage) | -40℃~+70℃ |
(Usage) | -40℃~+55℃ |
Option Title | Code | Code Description |
Accessory | 0 | 10m Cable |
1 | Carbon steel flange, bolt and nut, Metal gasket, 10m Cable | |
2 | Stainless steel flange, bolt and nut, Metal gasket, 10m Cable | |
3 | Carbon steel flange, bolt and nut, Metal gasket | |
4 | Stainless steel flange, bolt and nut, Metal gasket | |
5 | Customization | |
9 | None | |
Transmitter Power and Signal Line Electrical Interface | W | M20 |
M | 1/2NPT | |
N | 3/4NPT | |
P | G1/2 | |
G | G3/4 | |
E | Customization | |
T | None | |
Communication | 0 | None |
1 | Active circulation(4-20mA), Active frequency(0-10KHz), RS-485 | |
2 | Active circulation(4-20mA), RS-485 | |
3 | Active frequency(0-10KHz), RS-485 | |
4 | Passive frequency(0-10KHz), RS-485 | |
5 | Active circulation(4-20mA), Active frequency(0-10KHz), Passive HART(DPT Transmitter Only) | |
6 | Active circulation(4-20mA), Active frequency(0-10KHz), Active HART(DPT Transmitter Only) | |
7 | Passive frequency(0-10KHz), Active HART (DPT Transmitter Only) | |
9 | Customization | |
Measurement Mode | B | Standard measurement type |
C | Water Contents Measuring Type | |
E | Density Measuring Type | |
F | Viscosity Measuring Type | |
G | Flow Rate Measuring Type | |
Z | Undefined |
