The product is assured to be used in various conditions since its thermowell could not only resist corrsion but also with certain mechanical strength. Assembly RTD temperature sensors are widley applied to aviation, nuclear energy, petrochemical, metallurgy, machinery, electric power industries and technical area, especially suitable for narrow and curved installation space or applications that is micromation or fast response is required.
1.Customized RTD temperature sensor

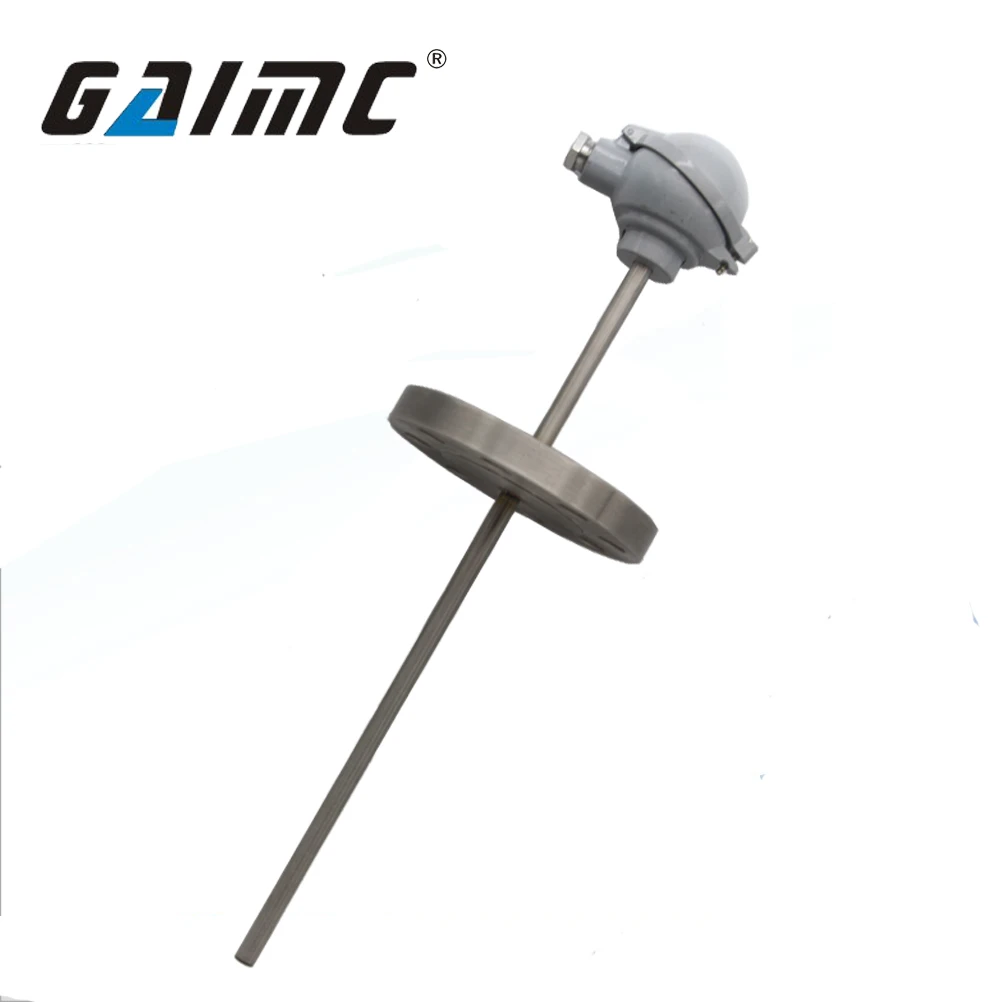

2.thread，flange etc.
3.High precision
4. Imported film resistance element, reliable, stable performance
Product structure
Range and tolerance
Type | Nominal resistance R at 0℃ | Resistance ratio W (100℃) | Range and tolerance | |
Range (℃) | Tolerance | |||
Pt10 | 10 | 1.3851 | Ceramic components: -200~600 Mica components:-200~420 | Class A:±(0.15+0.2%|t|) Class B:±(0.3+0.5%|t|) |
Pt100 | 100 | |||
Cu50 | 50 | 1.4280 | -50~100 | ±(0.3+0.6%|t|) |
Cu100 | 100 | |||
Terminal box
Installation
RTD---PT100 | |
| Model | PT100 |
| Range | -8~+18℃ |
| Type | 3 wire(water-proof) |
| Accuracy | A |
| Material | SS316 |
| Thread | M25*1.5 |
(send us parameters or drawing reference)
