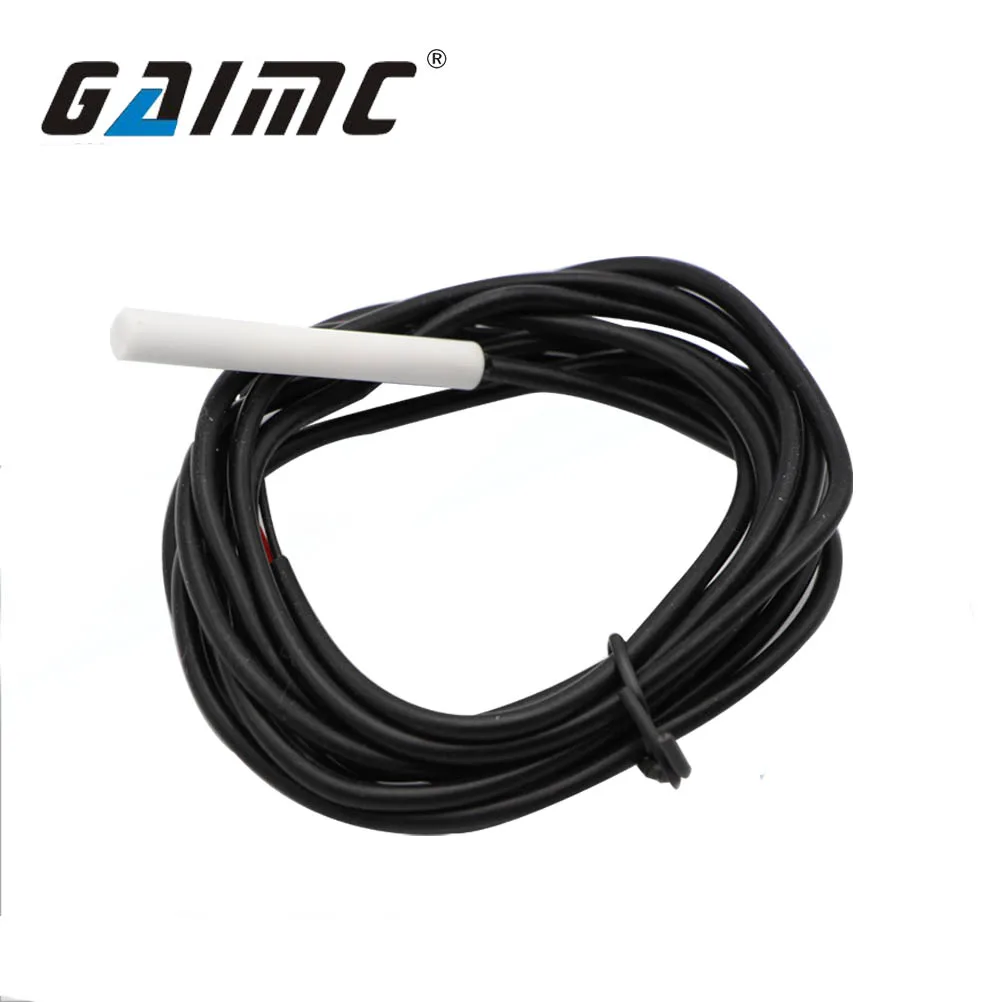

GTS100 NTC temperature sensor 100K is connecting high precision, high reliable NTC thermistor with wires , encapsulated with insulation, thermal conductivity, waterproof material into the required shape, It's easyly to install and remote measurement and control temperature.
Features：
1. The wide range of resistance: 1KΩ~1400KΩ ;
2. By good insulation and high reliability, reflecting the speed;
3. Compact structure, easy installation, waterproof good;
4. Adopt double seal technology, with good insulation sealing and mechanical impact resistance, bending resistance, high reliability;
5. The resistance and B value are high precision, good consistency and interchangeable;
1.NTC temperature sensor
2.3D printer temperature sensor
3.customized shape for you
R value R25 | 1KΩ~1400KΩ (1K,2K,4.7K,5K,10K,15K,20K,30K,50K,100KΩ)etc. |
B value R25/50 | 3270K~4650K(3270K,3380K,3470K,3550K,3700K,3950K,4200K,4650K) |
R25 accuracy | 1%,&2% |
B value accuracy | 1% |
Temperature Range | -40~+300℃ |
Shell size | Diameter:1.5~9mm;length:3mm~1000mm |
Shell material | Stainless steel, copper, copper plated nickel, aluminum, ABS, PVC, epoxy |
Wire | UL Series(such as UL1007),Supply line number, using temperature range, outside diameter and material requirements. |
Connector | Molex,JST,DuPont,CWB,CJT etc. |
Drivepipe | Heat shrinkable tube;PVC tube,;glass fiber tube;teflon tube |
| NTC temperature sensor | |
| temperature range | 350℃ |
| Application | 3D printer |
| B value | 3950 |
| R value | 10k |
| Accuracy | 1% |
| probe dimension | copper M4 thread |
| wire | 145mm(include terminal) |
| wire end | XH2.54-2P |
