GTC601 series economic digital temperature controller is a high cost performance industrial temperature controller. It is with advantage of handy usage and easy operation, but its performance of temperature drift and stability is better than similar instrument. GTC601 series economic digital temperature controller is special designed for applications with 0-999℃ temperature range including light industry machinery, environmental refrigeration, heating equipment and baking ovens.
Product integrated SSR voltage drive or relay contactor output
In order to protect the compressor, the product is designed with delay output function.
With artificial intelligence adjusting algorithm with Auto tuning (AT) function
Compliant with ISO9001 and CE certification

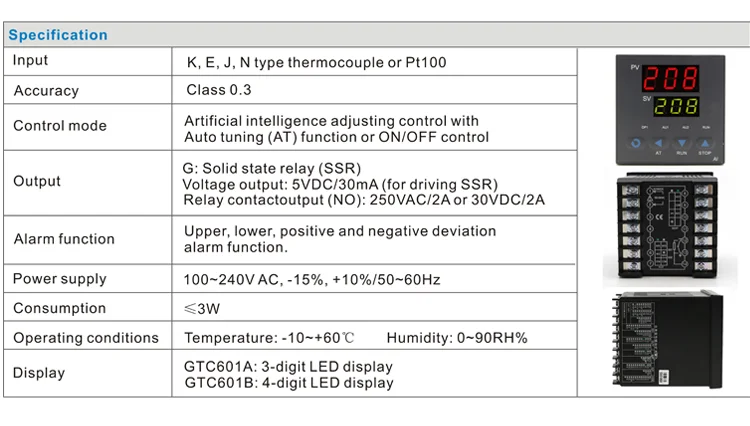

Specification

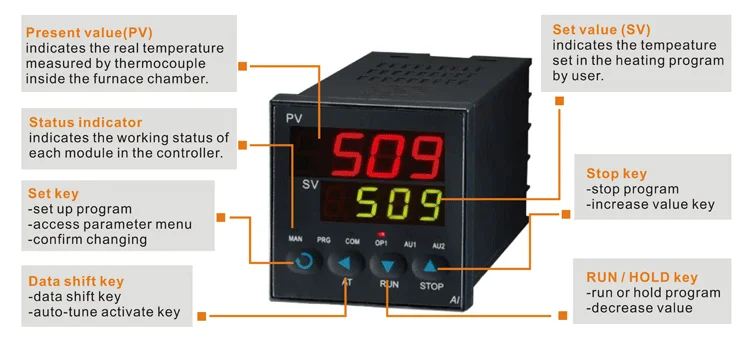

Product Panel

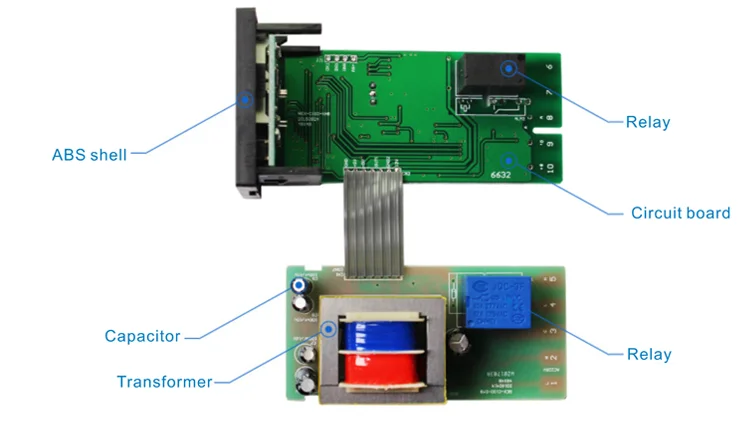

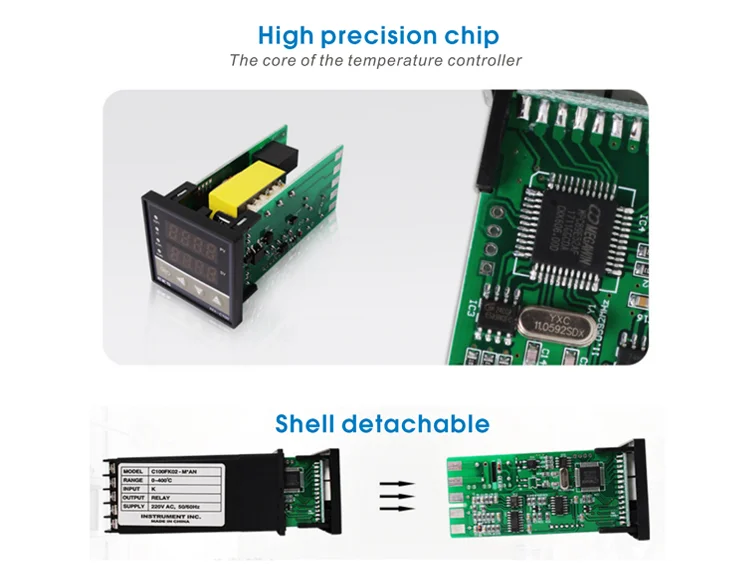

Product Internal

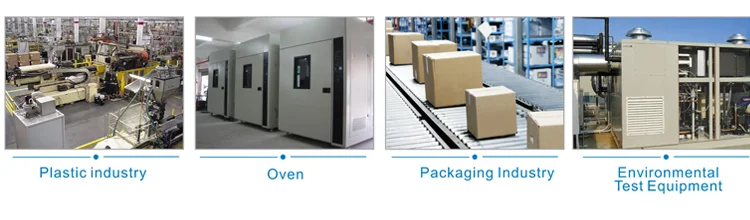

Application
GTC601 series digital temperature controller is special designed for applications :
♦Light industry machinery
♦Environmental refrigeration
♦Heating equipment
♦Baking ovens
.............
GTC | ||||||
Model | 601A | Economic artificial intelligence temperature controller, 0.3 class accuracy, double 3-digit display | ||||
601B | Economic artificial intelligence temperature controller, 0.3 class accuracy, double 4-digit display | |||||
Dimension | A | Panel size 96×96mm, insert depth 100mm | ||||
B | Panel size 160×80mm (width x height), insert depth 100mm | |||||
C | Panel size 80×160mm (width x height), insert depth 100mm | |||||
D | Panel size 72×72mm, insert depth 95mm | |||||
D2 | Panel size 48×48mm, insert depth 95mm | |||||
E | Panel size 48×96mm (width x height), insert depth 100mm | |||||
F | Panel size 96×48mm (width x height), insert depth 100mm | |||||
Primary output (OUTP) | G | Solid state relay driving voltage output module (DC5V/30mA) | ||||
L | Relay contact or output (250V2A or 30VDC/2A) | |||||
Auxiliary port (AUX) | L0 | For domestic large size single channel relay output module (capacity 250VAC/2A) | ||||
L2 | For small size single channel relay output module (capacity 250VAC/1A) | |||||
L5 | Double channel relay output module (capacity 250VAC/2A) | |||||
Color | Q | Black | ||||
Z | Gray | |||||
