Torque range: Standard of 0~10000Nm
Output signal: Pulse, 4-20mA, 1-5v, etc; can be equipped with indicator (showing: Torque/ speed/ power)
Application: Test of torque and power in many different fields
Torque range: Standard of 0~10000Nm
Output signal: Pulse, 4-20mA, 1-5v, etc; can be equipped with indicator (showing: Torque/ speed/ power)
Application: Test of torque and power in many different fields
1. Signal output waveform square amplitude optional 5V/12V/15V/24V.
2. Boot 5 minutes into the working status, not need preheating course.
3. high accuracy, good stability and anti-jamming.
4. Do not need repeated zero setting can measure positive and negative torque.
5. Small volume, light weight, easy to install.
6. The sensor can be used independently from the second instrument, so long as providing the power ± 15V(200mA),
according to the socket pin number, then it can output isotropic wave or pulse wave frequency signal whose impedance is proportional to the torque.
7. Torque range: Standard of 0~10000Nm,more than 10000Nm can be customized.
Torque accuracy | <±0.5 % F·S, <±0.25 % F·S, <±0.1 % F·S(Optional) |
Frequency response | 100μs |
The nonlinear | <±0.1 % F·S |
Repeatability | <±0.1% F·S |
Return difference | <0.1 % F·S |
Zero time drift | <0.2 % F·S |
Zero temperature drift | <0.2 % F·S /10℃ |
Using temperature | -10 ~ 50℃ |
Storage temperature | -40 ~ 70℃ |
Power supply voltage | ±15VDC,24VDC(Optional) |
Frequency signal output | 5KHz—15KHz,0-20mA,4-20mA,0-5V,0-10V,1-5V(Optional) |
Speed signal output | 60 pulse/speed(0~5V/0~10V/4~20mA optional) |

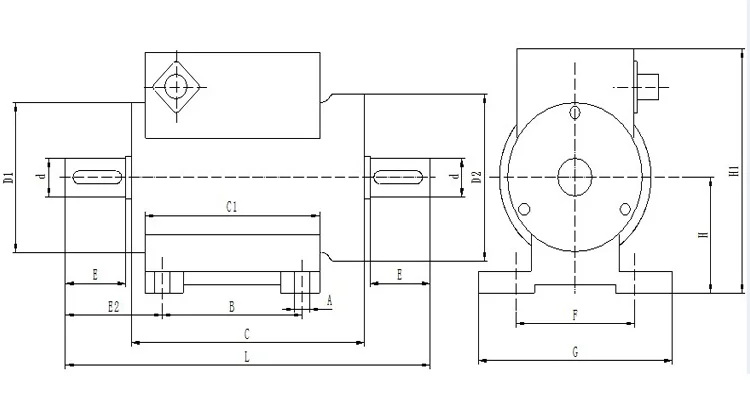

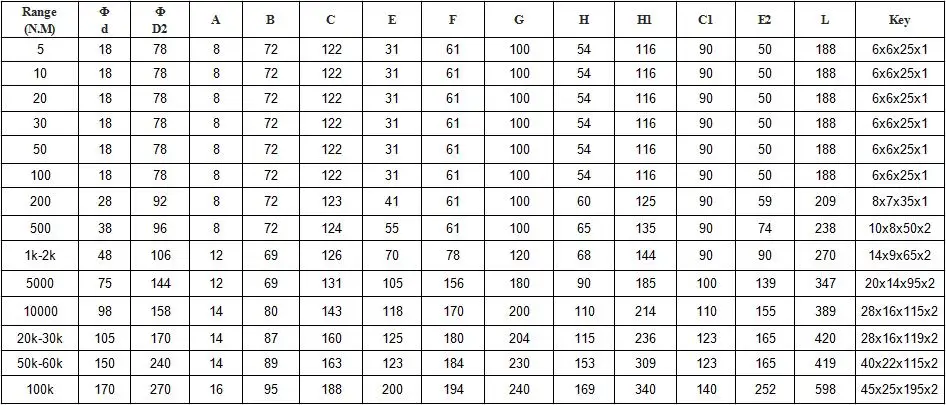

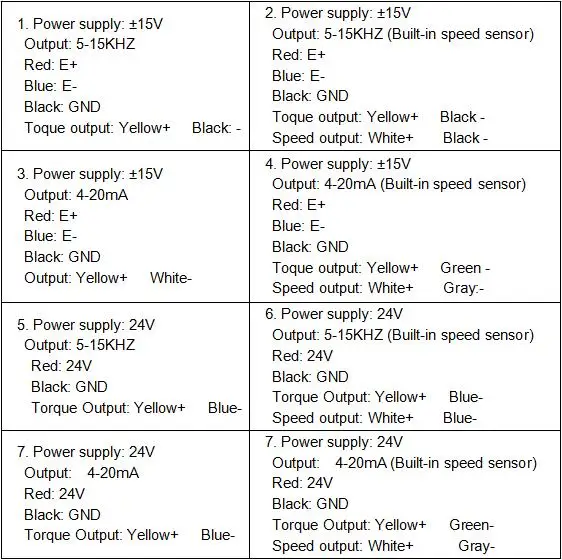

The torque sensor uses an aerospace connector (with shieded cable). The shielded cable out let line defines:

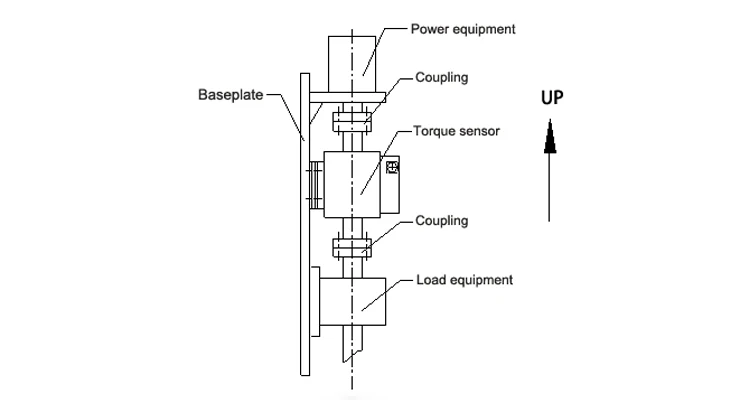

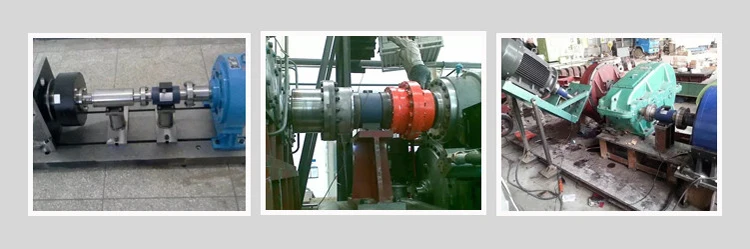

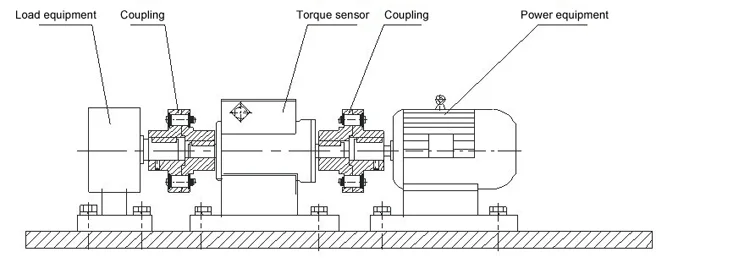

1. Test of torque and power of motor, engine, internal combustion engine and other rotary force equipment.
2. Test of torque and power of fan, water pump, gear box, torque wrench.
3. Test of torque and power of railway locomotive, automobile, tractor, airplane, ship, mining machinery.
4. It can be used to detect the torque and power in the sewage treatment system.
5. It can be used to make viscosimeter.
6. It can be used in process industry.

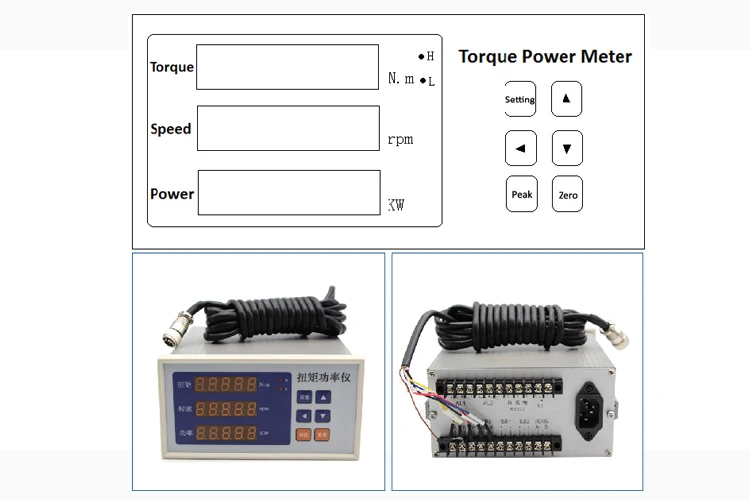

The Dynamic Torque Tester is an intelligent measuring instrument designed and manufactured to test and detect various dynamic torques. High-precision test equipment for detecting torque, speed and power of various motors and reducers. Widely used in a variety of motors, machinery manufacturing, scientific research institutions and other industries.
Size: Panel mounted 160x80x170mm;
Power supply: 220VAC
About Display range:
Torque measurement: -99999~99999N.m, the absolute value is displayed: 0~99999N.m, the decimal point position can be set
Speed display: 0~99999, the decimal point position can be set
Power display: 0 ~ 99999, automatic adjustment of the decimal point
Pulse input signal: all kinds of output sensor signal, such as NPN, PNP, OC, proximity switches, rotary encoders
Transmission output
Optical isolation
2 way 4mA~20mA DC current output. Output resolution: 1/4000; error less than ±0.2% F.S, load capacity: less than or equal to 600Ω
External power supply: Either ±15VDC or 24VDC
Measurement frequency: Speed pulse input 1Hz~20KHz
Torque pulse input 5KHz ~ 15KHz, can be extended to 1HZ ~ 60KHZ
refresh frequency measurement: 30 times per second, suitable for fast response occasions
