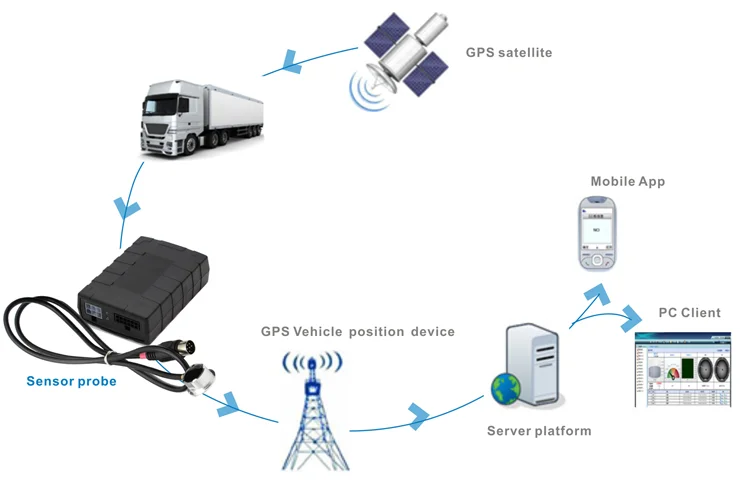

GUT810 Ultrasonic level sensor uses the ultrasonic probe to detect the oil level, receives the oil level data through the data processor, then sends the oil level information to the system platform through the GPS, produces the oil quantity report after analysis . Sensors support serial output, and most brands of GPS , can be easily connected to the monitoring system.
Mainly used in vehicle anti-theft system, fleet management and diesel, gasoline, water, LPG,fuel tanks.
Operating distance of 50mm to 1000m
Supports metal, plastic, glass or other tanks
Supports tanks wall thickness up to 6mm

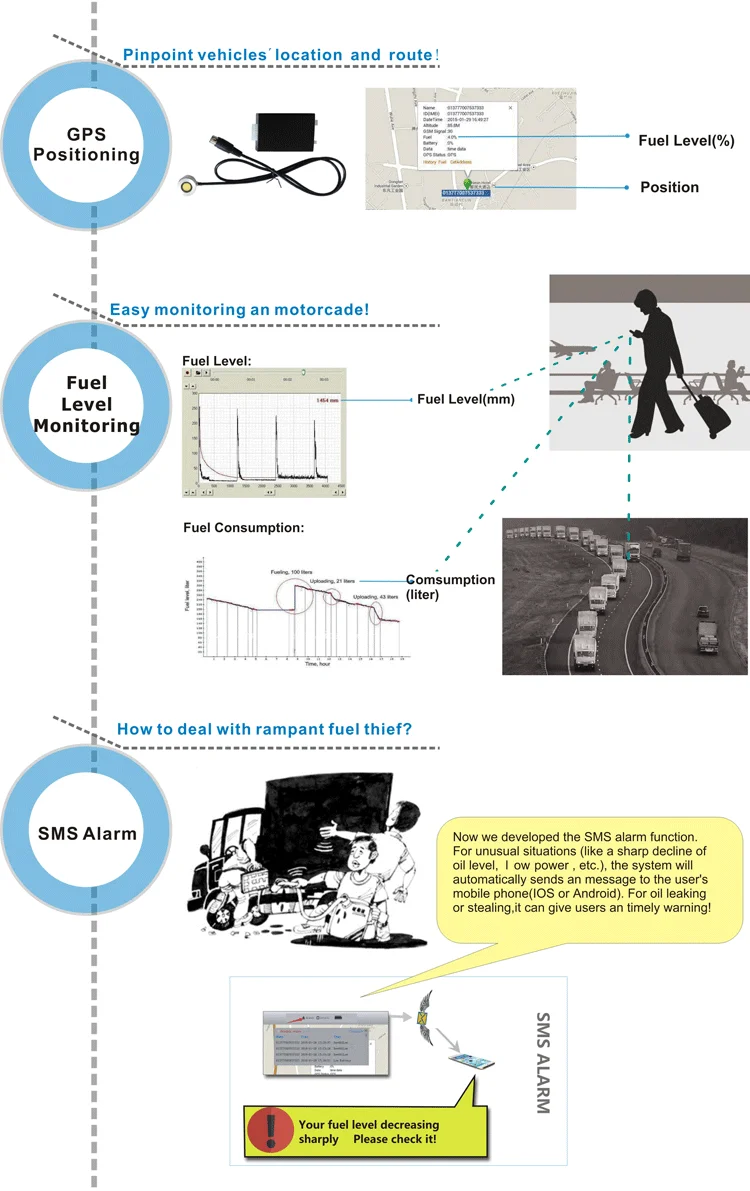

Integrated with GPS/GPRS, LCD, PC or alarms servers and other controllers to monitor
Monitor several liquids level, including fuel, diesel, LPG, oil etc.
Anti-theft of fuels; SMS Alarm
Item | Data |
Working Voltage | 9V~36V DC |
Working Temperature | -40℃~+85℃ |
Working humidity | 5%~90% |
Pressure range | ≤0.8kg or 0.8MPa |
Resolution | 0.1mm |
Measurement range | Depending on the material and thickness of the container. if 5mm thick steel plate, the measurement range is 5~100cm |
Accuracy | ±0.5% |
Output signal | RS232 or RS485 |
Explosion-proof grade | Exia IICT6 / Exd IICT5 |
Communication port parameter | Baud rate:9600. 8 data bits. 1stop bit. No flow control. No parity bit. The height value of the smoothing process is transmitted once per 10s. (Baud rate,Transmission interval and parity bit can be customized) |
