Description temperature transmitter
1. Handy installation;
2. RTD and standard analog output signal options;
3. With lightning protection function and high accuracy;
4. Main application: heating, ventilation applications in fields of air conditioner, agriculture, greenhouse, machinery, etc.
Specification temperature transmitter
Medium | liquid,gas |
Input | PT100,PT1000 |
Range | -200~+350℃ |
Accuracy | 0.5% |
Temperature change effect | For 0.5 grade:0.05%F.S/℃ |
Protection tube diameter | 5,6,8(mm) |
Protection tube material | SUS304 |
Output | 4~20mA(two-wire);1-5V(three-wire) |
Display | Without display,With display |
Installation | Fixed thread,adjustable thread,Fixed flange, adjustable flange,tri-clamp |
Hersman joint | |
12~36VDC,nominal voltage 24VDC | |
Operating temperature range | -25~+85℃ |
-45~+125℃ | |
5~95%,No condensation |
Type selection temperature transmitter
GTT200- |
|
|
|
|
|
|
|
|
| Note |
Sensor | A |
|
|
|
|
|
|
|
| PT100 |
B |
|
|
|
|
|
|
|
| PT1000 | |
Accuracy | 1 |
|
|
|
|
|
|
| ±0.5% | |
Protection tube diameter(d) | 5 |
|
|
|
|
|
| φ5(mm) | ||
6 |
|
|
|
|
|
| φ6(mm) | |||
8 |
|
|
|
|
|
| φ8(mm) | |||
Total Length (L) |
| *** |
|
|
|
|
| Customized(mm) | ||
Insert length (Contains the thread) | 100 |
|
|
|
| 100(mm) | ||||
*** |
|
|
|
| Customized(mm) | |||||
Display | 0 |
|
|
| Without-display | |||||
1 |
|
|
| With-display | ||||||
Connection | M |
|
| M20*1.5 | ||||||
G |
|
| G 1/2 | |||||||
N |
|
| 1/2 NPT | |||||||
K |
|
| Tri-clamp | |||||||
X |
|
| Customized | |||||||
Output | 1 |
| 4-20mA(two-wire) | |||||||
2 |
| 1-5V(three-wire) | ||||||||
Temperature measurement range | *** |
| ||||||||
Voice of customer temperature transmitter
Related products temperature transmitter
packing&shipping temperature transmitter
Company information temperature transmitter
HOW TO ORDER? CONTACT US NOW AS BELOW⇓

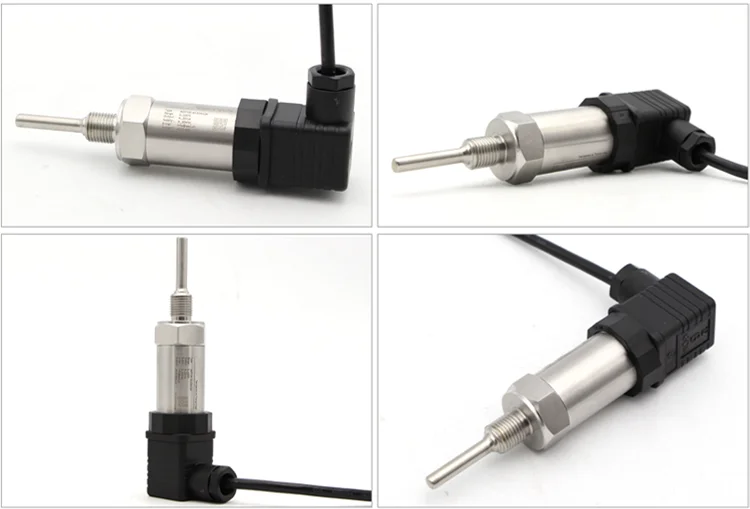

Detail show temperature transmitter
Dimension
Type selection temperature transmitter
GTT200- |
|
|
|
|
|
|
|
|
| Note |
Sensor | A |
|
|
|
|
|
|
|
| PT100 |
B |
|
|
|
|
|
|
|
| PT1000 | |
Accuracy | 1 |
|
|
|
|
|
|
| 0.5% | |
Protection tube diameter(d) | 5 |
|
|
|
|
|
| 5(mm) | ||
6 |
|
|
|
|
|
| 6(mm) | |||
8 |
|
|
|
|
|
| 8(mm) | |||
Total Length (L) |
| *** |
|
|
|
|
| Customized(mm) | ||
Insert length (Contains the thread) | 100 |
|
|
|
| 100(mm) | ||||
*** |
|
|
|
| Customized(mm) | |||||
Display | 0 |
|
|
| Without-display | |||||
1 |
|
|
| With-display | ||||||
Connection | M |
|
| M20*1.5 | ||||||
G |
|
| G 1/2 | |||||||
N |
|
| 1/2 NPT | |||||||
K |
|
| Tri-clamp | |||||||
X |
|
| Customized | |||||||
Output | 1 |
| 4-20mA(two-wire) | |||||||
2 |
| 1-5V(three-wire) | ||||||||
Temperature measurement range | *** |
| ||||||||
-
