GPRS network available in many application areas with mobile signal
LCD real-time display with backlight
Ultra-low power consumption and sleeping mode lower to 15uA@12V DC
Networking automatic time checking and offline automatic connection
Remote setting for collection and transmission interval
Alarming function for upper and lower limit of threshold value and remote setting for threshold value
PC and mobile terminal data application
Alarming with power off and real-time notification for battery voltage
IP67 protection, moisture-proof, field environment available.
GLT508 is an intelligent instrument with low power consumption and wireless communication function.
With a core of advanced industrial MCU and a high quality level sensor, it integrates the mature GPRS network to realize the wireless transmission between field sensors data and server.
GLT508 reports the data actively based on the set interval and the customer could realize the remote instrument configuration and data checking through WEB pages. All the uploaded and transmitted data will be stored into database automatically for the convenience of further checking.
Users could log in related URL by networked PC or Mobile Terminal to get data and meanwhile to do statistics and analysis for the data, then forming a report and data graph, which is featured as visual, accurate and high-efficient.
Based on widely covered GPRS network, the product could detect real-time data of many monitoring sites within a large areas like water tank level and hydro-logic monitoring.
application:
It is mainly used in fields like tap-water plant and hydroelectric power plant.
Specifications
Level range | 0m~1m…200m H2O |
Accuracy | ±0.5%FS |
Output signal | LCD field display, GPRS wireless signal transmission |
Stability | ±0.5%FS/Year |
Operation temp | -20℃~70℃ |
Relative humidity | 0%~95% |
Vibration | ≤3g/10Hz...150Hz(IEC 60068-2-6-2007) |
Storage temp | -30℃~80℃
|
Protection | IP67 |
EMC | GB/T 17626.2/4-2006
|
Display | 6 digits 8 segments LCD |
Sensing diaphragm | Stainless steel 316L |
Weight | about 1.02kg |
Button | magnet trigger display |
Electric connection | 5 core cable(power) |

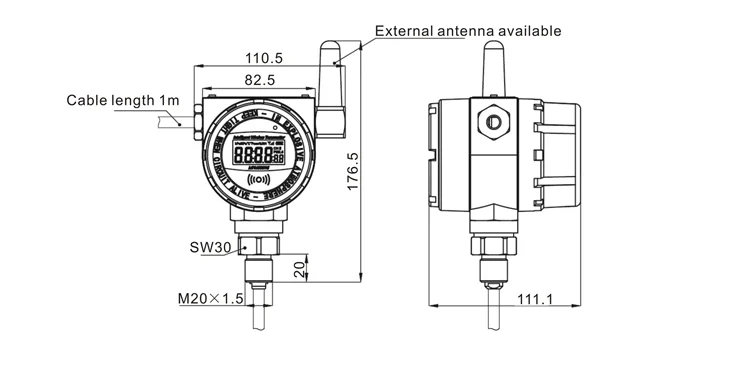

Size chart

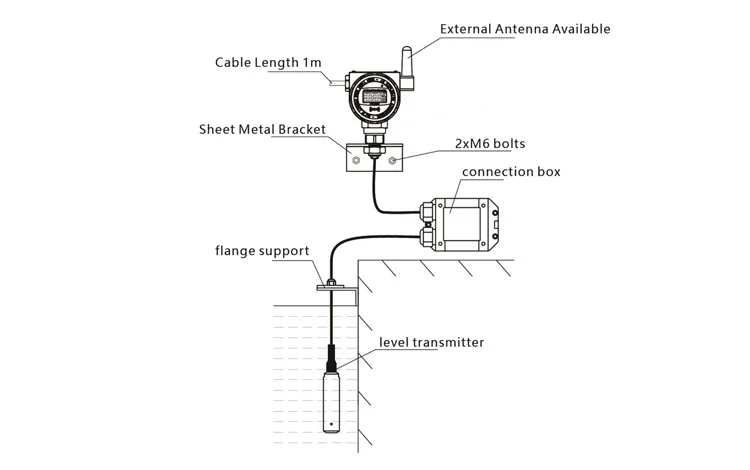

connection

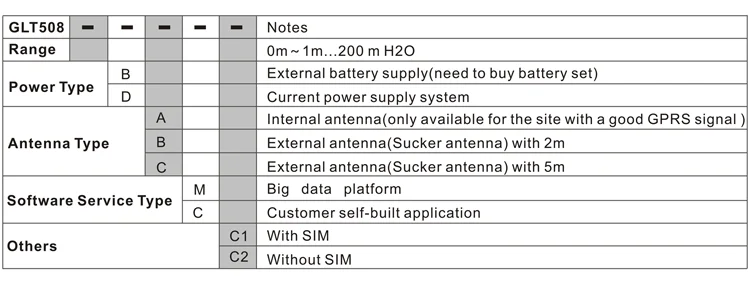

Selection table
