Home>GAMICOS>Water Level Sensor>GAMICOS GAMICOS

1.Widely used in rivers, lakes, shoal,tanks

2.Small antenna size, easy to install and dustproof cover antenna protection device.

3.The measurement range of up to 70 meters, covering a large reservoir water level measurement.

4.With a variety of output circuit interface and data acquisition system.

share：

Description Specifications Dimension Type Selection Download Online inquiry

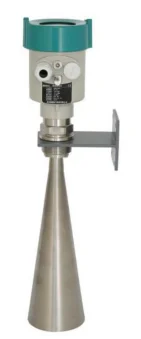

GLT73 series of 26G radar level meter adopts a special demodulation technology, can accurately identify the transmitted pulse and pulse interval, thus further calculate the antenna to the measured medium surface distance.Widely used in rivers, lakes, shoal,tanks water level measuring.

GLT73

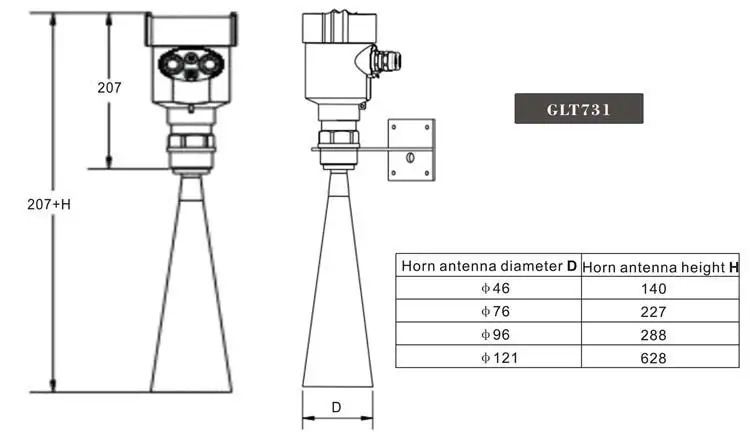

GLT731

	Application	Rivers, Lakes, Shoal,tanks
	Measuring range	30meter
	Process connection	Thread Flange /Bracket
	Medium Temperature	-40~100°C
	Power Supply	6-26VDC
	Accuracy	±3mm
	Frequency range	26GHz
	Antenna material	SS
	Signal output	4~20mA/HART,RS485/Modbus

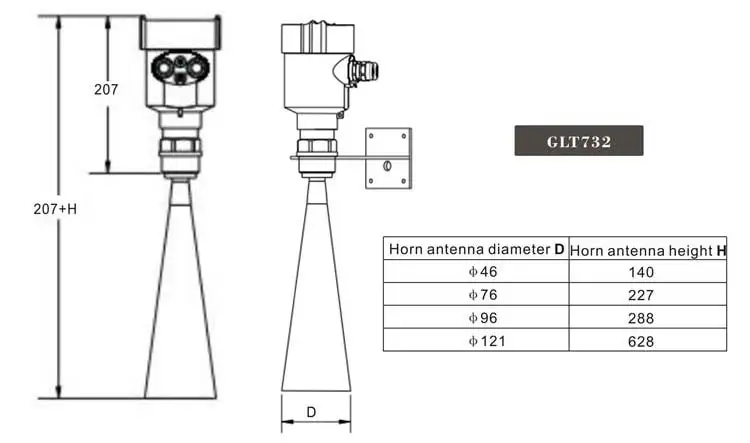

GLT732

	Application	Rivers, Lakes, Shoal
	Measuring range	70meter
	Process connection	Thread Flange /Bracket
	Medium Temperature	-40~100°C
	Power Supply	6-26VDC
	Accuracy	±3mm
	Frequency range	26GHz
	Antenna material	SS
	Signal output	4~20mA/HART,RS485/Modbus

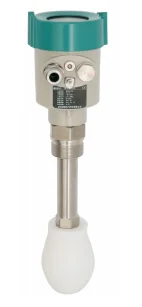

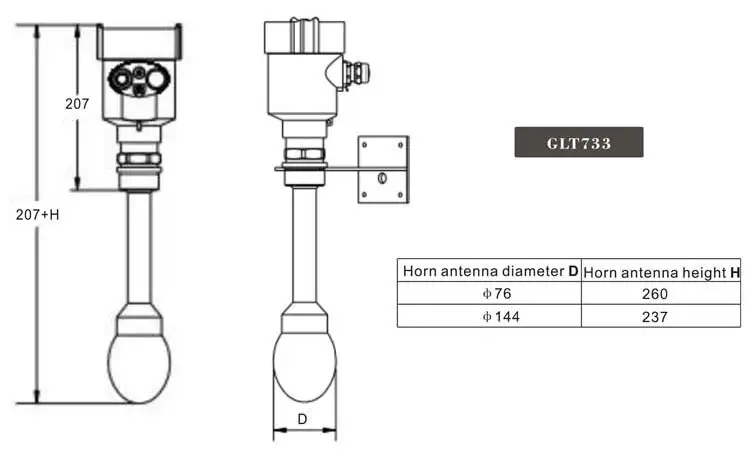

GLT733

	Application	Rivers, Lakes, Shoal
	Measuring range	70meter
	Process connection	Thread Flange /Bracket
	Medium Temperature	-40~100°C
	Power Supply	6-26VDC
	Accuracy	±5mm
	Frequency range	26GHz
	Antenna material	PP+PTFE
	Signal output	4~20mA/HART,RS485/Modbus

GLT73

GLT73

GLT73

Download
GLT731

Update time：2018.09.26
Download
GLT732

Update time：2018.09.26
Download
GLT733

Update time：2018.09.26
