Switch in both Chinese and English, Chinese and English display, simple operation, easy setting

Wide range, the max. range can reach 60m

Humanized design, can be shown distance and level at the same time

By echo gram can determine the cause of the problem

  • 请填写标题
  • 请填写标题
  • 请填写标题
share：
Description Specifications Dimension Type Selection Download Online inquiry



Introduction of ultrasonic level sensor

Ultrasonic level meter (for material and liquid level measurement) is a non-contact highly reliable and cost-effective material level measuring instrument which is easily installed and maintained.

Applied in sewage tank, mixing tank, reaction kettle, Wells, tanks, rivers, reservoirs, fuel, water depth or liquid level measurement, etc.

GUT780



Features

♦ Switch in both Chinese and English, Chinese and English display, simple operation, easy setting

♦ Wide range, the max. range can reach 70m

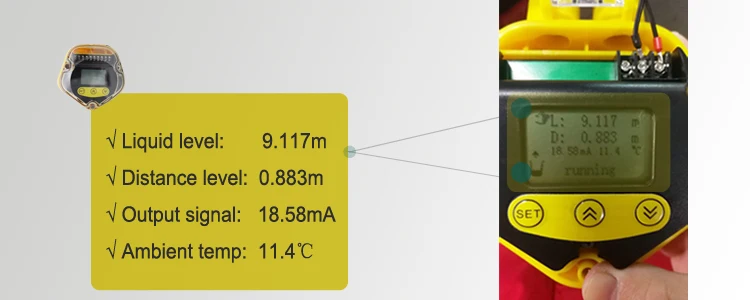

♦ Humanized design, can be shown distance(ullage) and level at the same time



Product Display

GUT780-

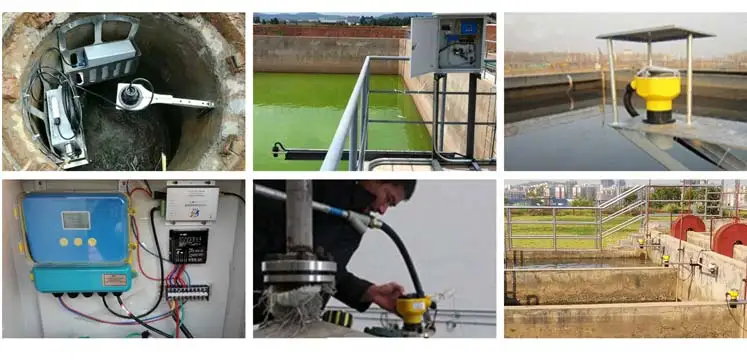

Application

Applied in sewage tank, mixing tank, reaction kettle, Wells, tanks, rivers, reservoirs, fuel, water depth or liquid level measurement, etc.

GUT780



Function

Integrated Type

Separate Type

Measuring range

5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m

5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m

Measurement accuracy

0.5%-1.0%

0.5%-1.0%

Resolution ratio

3mm or 0.1% (whichever is greater)

3mm or 0.1% (whichever is greater)

Display

English LCD

English LCD

Analog output

4-line system, 4~20mA/ 510Ω load

2-line system, 4~20mA/ 250Ω load

4~20mA/ 510Ω load

Relay output

2 groups (i.e. AC 250V/ 8A or

DC 30V/ 5A) optional,

state programmable

2 groups for single channel and 4 groups for double channels (optional) AC 250V/ 8A or DC 30V/ 5A, state programmable

Power supply

Standard configuration: 24VDC

Optional: 220V AC+15%  50Hz

Standard configuration: 220V AC+15%  50Hz

Optional: 24VDC 120mA

Customized: 12VDC or battery powered

Ambient temperature

Display instrument: -20~+60ºC

Probe: -20~+80ºC

Display instrument: -20~+60ºC

Probe: -20~+80ºC

Communication

485,232 communication (optional) (manufacturer agreement)

485,232 communication (optional)

 (manufacturer agreement)

IP grade

Display instrument: IP65

probe: IP68

Display instrument: IP65

probe: IP68

Probe cable

None

100m available, standard configuration: 10m

Probe installation

Select type based on measuring range and probe

Select type based on measuring range and probe
