High frequency 26GHz Intelligent Digital Radar Level Sensor
Description of Radar Level Sensor
Measuring principle
GLT71 Series Radar Level Sensor is high-frequency level measuring instruments with the maximum measuring distance up to 70 meters. The antenna is further optimized, and the new-type microprocessor can perform higher rate of signal analysis and processing, making the instrument available for complex measurement conditions, such as reactors, solid silos.
Measuring range
A. Measuring range setting B. Low position adjustment C.High position adjustment D.Blind spot range Measurement datum: thread bottom and flange sealing surface |  |
Application of Radar Level Sensor
GLTV71 Series of Radar Level Sensor
GLT711
| Application: All kinds of strong corrosive liquid, strong acid, strong base, Chemical liquid |
| Measuring range: 20 meter | |
| Process connection: Screw thread, Flange | |
| Medium Temperature: -40～120℃; | |
| Process pressure: -0.1～0.3MPa | |
| Accuracy:+/-5mm | |
| Frequency range: 26GHz | |
| Anti-explosion/safety grade: Exia II CT6 Ga, Exd ia II CT6 Gb / IP67 | |
| Signal output: 4~20mA/HART(Twowire/Four wire) RS485/Modbus |
GLT712
| Application: Slightly corrosive liquid, sewage, petroleum, river channel, heavy steam conditions, etc. |
| Measuring range: 30 meter | |
| Process connection: Screw thread, Flange | |
| Medium Temperature-40～250℃ | |
| Process pressure-0.1～4.0MPa | |
| Accuracy:+/-3mm | |
| Frequency range: 26GHz | |
| Anti-explosion/ safety grade: Exia II CT6 Ga, Exd ia II CT6 Gb / IP67 | |
| Signal output: 4~20mA/HART(Two-wire/Four-wire) RS485/Modbus |
GLT713
| Application: Solid materials, strong dust and crystallization, condensation occasion |
| Measuring range: 70 meter | |
| Process connection: Screw thread, Flange | |
| Medium Temperature: -40~250℃ | |
| Process pressure: Atmospheric | |
| Accuracy:+/-15mm | |
| Frequency range: 26GHz | |
| Anti-explosion/safety grade: Exia II CT6 Ga, Exd ia II CT6 Gb / IP67 | |
| Signal output: 4~20mA/HART(Twowire/Four wire) RS485/Modbus |
GLT714
| Application: Long range storage container, process container, or hanging bulk material and crystallization, condensation occasion |
| Measuring range: 70 meter | |
| Process connection: Screw thread, Flange | |
| Medium Temperature: -40～250℃ | |
| Process pressure: Atmospheric | |
| Accuracy:+/-15mm | |
| Frequency range: 26GHz | |
| Anti-explosion/safety grade: Exia II CT6 Ga, Exd ia II CT6 Gb / IP67 | |
| Signal output: 4~20mA/HART(Twowire/Four wire) RS485/Modbus |
GLT715
| Application: Solid particles, dust, reservoir, river, water level monitoring |
| Measuring range: 30 meter | |
| Process connection: Screw thread, Flange | |
| Medium Temperature: -40～250°C | |
| Process pressure: Atmospheric | |
| Accuracy: 10mm | |
| Frequency range: 26GHz | |
| Anti-explosion/safetygrade: Exia II CT6 Ga/Exd ia II CT6 Gb / IP67 | |
| Signal output: 4~20mA/HART(Twowire/Four wire) RS485/Modbus |
GLT716
| Application:Liquid, slurry, condensation, corrosive liquids. |
| Measuring range: 20 meter | |
| Process connection: Screw thread, Flange | |
| Medium Temperature: -40～150℃ | |
| Process pressure: Atmospheric | |
| Accuracy:+/-3mm | |
| Frequency range: 26GHz | |
| Anti-explosion/safety grade: Exia II CT6 Ga/Exd ia II CT6 Gb / IP67 | |
| Signal output: 4~20mA/HART(Twowire/Four wire) RS485/Modbus |

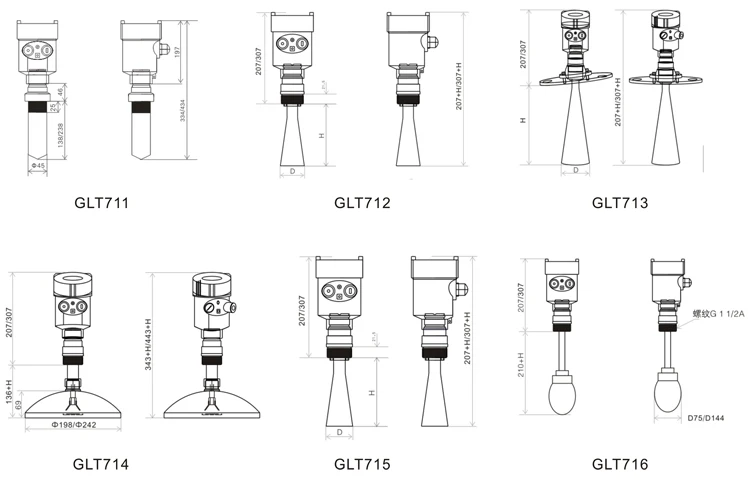

Dimension of Radar Level Sensor
-
